|115v 60hz||230v 60hz|
|Stainless / Coating
|Stainless / Coating
No heat - 115vac 60hz 4,000 BTU/hr (1172 Watt)
Voltaire AN SeriesSpecifications
No heat - 230vac 60hz 4,000 BTU/hr (1172 Watt)
Enclosure cooling to protect robotics equipment for manufacturing and automation production lines from dust, sprays, shavings and other environmental conditions. Enclosures are built to protect the computer and electronic equipment but those enclosures trap heat inside. Cooling equipment that’s used as part of mass production.
Fiber to the home or 5G equipment need to be protected from water, debris, dust and dirt tampering. Telecommunications requirements have a wide range of needs from freezing colds to scorching summers outside. Heat is always going to be building up in the cabinet because equipment is always running because downtime is not an option.
Bottle conveyor belt, corrugated boxes, labeling machines with electrical servo cabinet that needs to be cooled or computer automation enclosed in a cabinet with an electrical system that controls it that needs to be cooled with in a manufacturing facility. Facilities aren’t temperature regulated if anything in this environment is behind a panel that even has a 200w heat load you’ll need the ability to get below ambient with active cooling.
Serviceability is key. We understand the need for a unit that’s easy to maintain and repair if necessary through the duration of the 10-20 year life expectancy of a unit. Like any air conditioner, certain components have a finite duty cycle and may wear out over time. Contactors and relays with a 200,000 duty cycle may eventually fail. We made sure with every VoltAire unit, these components were readily accessible so units can be repaired very quickly. We’ve also intentionally used easily accessible parts you’re likely already carrying on your truck so you don’t have to overnight a special relay from Florida. Even if our custom temperature control board goes down, you’re able to wire up a mechanical dial thermostat while a replacement can be sent out.
Understanding the cost to deploy a truck, we put a lot of thought and effort into our electrical tray design. Following in the vein of how residential units are designed, our units feature a centralized compartment easily accessed by a 5/16 driver that’s already on your truck.

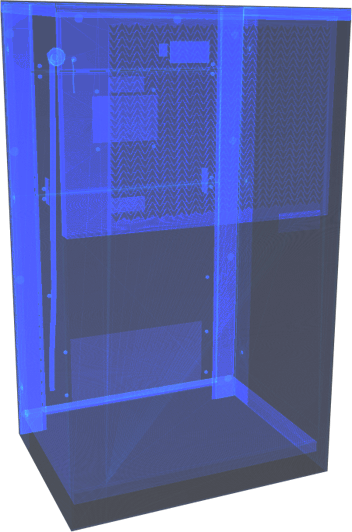

When you take off our cosmetic cover, secured by a commonly available Torx fastener, it reveals the Acrylume Cabinet. Remove the six screws on top and all your electronics are going to be easily and visibly laid out in our electrical component tray. Remove a bottom panel and you’re into the compressor and motors. You can see labels to the components and where the wiring goes all right there. Unlike competitors where you might have to remove several components to access something buried deep inside the unit, it was important for us to design the equipment so it limited the amount of time a technician would need to troubleshoot and replace something simple. Most repairs can occur without even taking the unit off the cabinet.Easly Accessible
Tested, then tested again
Independent bust and helium leak tests
Salt spray test
All DX and electrical systems are tested in the factory
It takes longer to build units right, but we can confirm they’ve been built to the toughest standards.
Everything starts with the quality and durability of the materials that make up our units. We begin with an Acrylume sheet steel that’s coated with a clear organic resin surface treatment for excellent corrosion resistance in a salt fog environment. Any metal that’s in contact with water like our condenser and evaporator and exterior fasteners are all built out of stainless steel. Our units are closed-loop systems, meaning, we don’t allow any ingress, air from the outside to come inside the cabinet. For this reason, every one of our condenser coils is coated with a dipped Modine Luvata E-Coat (https://modinecoatings.com/electrofin-e-coat-process/) to extend the life against salt fog allowing our units to operate in some of the most extreme environments. Our esthetic cover is a powder-coated 5052 marine grade aluminum alloy.
Motors are a critical component of every air conditioner and we go to the extra expense to source the best. Rosenberg motors are engineered in Germany and manufactured in France with excellent distribution in the USA. Rosenberg fans have a high IP rating that protects against dust and water to add life to the equipment.
When space allows, we use a rotary compressor because they historically last longer and are more energy-efficient. Our TXV’s are exclusively Danfoss because they are the only TXV manufacturer that uses a stainless steel outside and inside copper blend for durability.
Downtime is not an option on critical telecommunications infrastructure. Units need to be able to operate in a wide range of temperatures and operate 24/7. We’re proud to be certified for use on AT&T cabinets.
Our units are designed and built around GR47 and to meet or exceed NEMA 4 tested and certified by UL with NEMA 4x (stainless steel cabinet) as an available option.
As the lifeblood of an air conditioner, we go great lengths to make sure the systems are sealed, is durable and reliable. Every unit undergoes an extensive testing and retesting process while it goes down the assembly line. Each unit is tested with:
Each unit has a “Traveler” (accompanying paperwork) that goes with the unit and when it’s handed off to the next station, the previous tests are verified with new eyeballs to ensure they’re accurate. All the data collected on the traveler is tested against data and averages in our system by a Quality Supervisor that reviews it to make sure everything falls in line where it should be.
