Find Your Replacement

Discontinued — nVent no longer sells it at any price

Your T150116G152 has a replacement — with one honest catch.

More cooling than your 800 BTU/hr unit — 1,000 BTU/hr — at the same 115V. The mounting holes and air cutouts need adjusting to take the AN01RMSXX — routine sheet-metal work from our swap template, so the gasket seats properly.

Also sold as McLean · Hoffman · Pentair · nVent — T150116G152 — 800 BTU/hr · 115V · NEMA 4X · R-134A

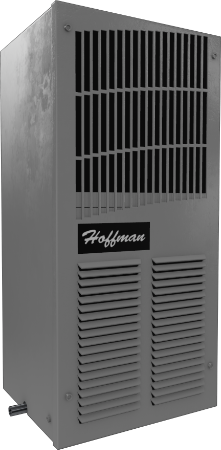

T150116G152 — existing unit

Yours

T150116G152

16.5″ × 7.5″ × 6.3″ · 27 lbs

Modified fit
VoltAire AN01RMSXX — replacement for T150116G152

Ours, in production

VoltAire AN01RMSXX

15.75″ H × 10.00″ D × 7.65″ W · 30.0 lbs

Fits After Modification Fit details ↓

You'll order: 1× AN01RMSXX — $3,899. Plan on adjusting the mounting holes and air cutouts — VoltAire suggests working from the template.

No price comparison to make — nVent no longer sells this unit at any price. The real cost to weigh is a planned swap now versus an emergency swap after it quits.

Your In-Production Replacement

AN01RMSXX

Fits After Modification

1,000 BTU/hr • 115V • NEMA 4X

Availability Built to Order 4–6 weeks — made in Orlando, FL
Includes Unit only Mounting + cutout modification in the field 30-day price lock · no-obligation quote
Built Orlando, FL — UL/cUL Listed

Need It Faster?

The AN01RMWXX is on the shelf right now — same 1,000 BTU/hr, same 115V, in an off-white painted cabinet. It ships next business day instead of 4–6 weeks — and it costs $1,405 less.

Take the in-stock AN01RMWXX $2,494

Your order total

$3,899

Unit price. Mounting + cutout modification in the field — template available.

Start My Order

Backed by VoltAire’s 12-month warranty (PDF) · UL 484 · Made in Orlando, FL

Existing Unit Discontinued

T150116G152

800 BTU/hr (234 Watt) • 115V
T150116G152
Brand McLean
Series T1501
Capacity 800 BTU/hr (234 Watt)
Voltage 115V
Heat No
Finish S

Where distributors publish pricing for the OEM equivalent, VoltAire runs 48% less on average (21-70% by model).

VoltAire Replacement In Production
AN01RMSXX
1,000 BTU/hr • 115V
VoltAire AN01RMSXX
Brand VoltAire
Series AN Narrow Series
Capacity 1,000 BTU/hr +25% cooling
Voltage 115V
Heat No
Finish 304 Stainless Steel (NEMA 4X)

What You'll Order

1× AN01RMSXX $3,899

Popular options

Need a different voltage or capacity? Configure your AN01 →

Built to Order • 4–6 weeks

1

Super Cool Coverage — 2 years of coverage, 30-day returns, no restocking fee. Terms

Details

Fit Details

Fits After Modification

More cooling than the T150116G152 — 1,000 BTU/hr against its 800 BTU/hr — at the same voltage; a solid match, just not bolt-for-bolt. Both the mounting pattern and the air cutouts need adjusting to take the VoltAire AN01RMSXX — routine sheet-metal work on a metal cabinet, no adapter plate required. VoltAire suggests working from the swap template so the mounting holes land right and the gasket seats with proper compression — that's what keeps water out. Call (844) 925-5668 if you'd like us to walk through it before you order.

Unit dimensions — what the tape measure will tell you

T150116G152 AN01RMSXX Δ
Height 16.5″ 15.75″ H -0.8″
Width 7.5″ 7.65″ W +0.2″
Depth 6.3″ 10.00″ D +3.7″
T1501 to AN01 Provisional cabinet cuts shown
The red areas come from the manufacturer's spec sheet and must be confirmed against your actual unit before cutting. This pairing needs cabinet cutting only — no adapter plate.
Cabinet cooler replacement comparison Existing nVent cabinet openings, the required modification, and the installed VoltAire arrangement. Existing T1501RETURNSUPPLYModifyRETURNSUPPLYInstalled AN01RETURNSUPPLY Cabinet cooler replacement comparison Existing nVent cabinet openings, the required modification, and the installed VoltAire arrangement. Existing T1501RETURNSUPPLYModifyRETURNSUPPLYInstalled AN01RETURNSUPPLY
Existing nVent AC outline Existing nVent opening New VoltAire unit outline VoltAire opening Existing cabinet metal that may need removal — verify first
The red hatching comes from the manufacturer's spec sheet; verify it against your actual unit before cutting.
Step 1 of 4 Start with the existing T1501 cabinet pattern.
Selected installation step Cabinet drawing for the selected installation step. RETURNSUPPLY

The two manufacturer drawings are centered on each other for visual comparison only, because a shared mounting reference between the two units has not been verified. Verify every opening against your actual unit before any cutting or mounting. This comparison is a visual guide, not a cutting or drilling template. Openings can vary with voltage and production run — verify against your actual unit before any cutting or mounting, and follow the manufacturer's installation template.

Not sure? Talk to a fit specialist — (844) 925-5668.

T150116G152 replacement — common questions

What replaces the McLean T150116G152?
The VoltAire AN01RMSXX — 1,000 BTU/hr at 115V, NEMA 4X, UL/cUL Listed and built in Orlando, FL. Fits after a cabinet modification — adjust mounting holes and air cutouts (template available), no adapter plate.

Is the T150116G152 discontinued?
Yes. nVent has discontinued the T150116G152 and no longer sells it at any price. The VoltAire AN01RMSXX is an in-production replacement at the same voltage and in the same capacity class, backed by a 12-month warranty.

Will the VoltAire AN01RMSXX fit my T150116G152 cutout?
After adjusting the mounting holes and air cutouts — routine sheet-metal work. VoltAire suggests working from the swap template so the gasket seats properly.

How much does a T150116G152 replacement cost?
The VoltAire AN01RMSXX is $3,899. nVent no longer sells the T150116G152 at any price, so there is no OEM price to compare. Volume discounts start at 4 units, and every quote locks pricing for 30 days with no obligation.

How fast can I get a replacement for my T150116G152?
Configured builds ship in 4–6 weeks from Orlando, FL. In-stock variants are sometimes on the shelf — call (844) 925-5668 and we'll find the fastest path for your spec.

Is the VoltAire AN01RMSXX an original McLean part?
No. VoltAire is an independent brand — an engineered replacement, not an OEM part. VoltAire Cooling is not affiliated with McLean, Hoffman, Pentair, or nVent. Units are UL/cUL Listed (UL 484) and manufactured in Orlando, Florida.

Why switch to VoltAire?

Engineered Replacement

Matched voltage and NEMA 4 protection, with the capacity difference stated in plain numbers above — with a clear fit path for your enclosure: direct, adapter plate, or template-guided modification. Built to replace McLean, Hoffman, Pentair, and nVent.

Built & Tested in the USA

Manufactured in Orlando, FL with a 5-point pressure and leak test. In-stock models ship fast from East Coast (VA) and Rocky Mountain (ID) warehouses; built-to-order configurations ship in 4–6 weeks.

48% Below Published Online Pricing, on Average

No distribution markup. Transparent pricing. Volume discounts at 4+ and 7+ units. Integrator pricing available for panel shops.

Need heat, stainless, 230V, or remote monitoring?

The AN01 is available with electric heat, stainless steel NEMA 4X, 48VDC, and factory ethernet controllers with Lead-Lag, SNMP, and BACnet.

Configure Your AN01 →
